Geocells for slope protection ecological restoration
Category：
HDPE Geocell
Keywords：
HDPE Geocell
Product Description

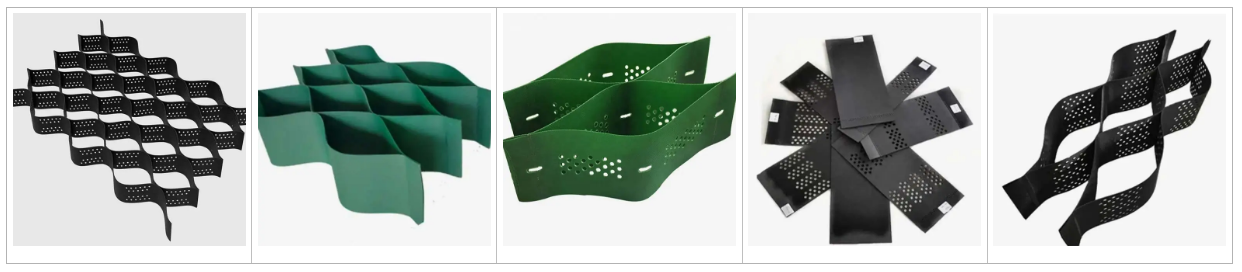

Geocell is a threedimensional mesh structure formed by highstrength HDPE (highdensity polyethylene) broadband, which is strongly welded. It is stretchable, can be folded up when transported, and open and filled with soil, stone or concrete materials when used, constituting a structure with strong lateral restriction and large stiffness. This unique structure has good mechanical properties, chemical stability and aging resistance, and can adapt to a variety of complex engineering environments. In the slope protection project, geocell can effectively fix the soil on the slope, prevent soil erosion and enhance the stability of the slope, which is a kind of economical, environmentally friendly and efficient slope protection material.
Specification
| Parameter | Specification range | Remarks |
| Height | 50mm、75mm、100mm、150mm、200mm | Selected according to the slope gradient and load requirements. Higher cells can hold more filler material and provide greater lateral restraint, suitable for slopes with larger gradients or requiring stronger protection. |
| Thickness | 1.0mm、1.2mm, 1.5mm, 2.0mm | Thicker sheets are suitable for slopes with higher strength requirements |
| Welding distance (node spacing) | 330mm、400mm、500mm、800mm | The smaller the node spacing, the stronger the structural integrity. Smaller welding distance can make the structure of geocell more compact and improve its overall strength and stability; while larger welding distance is suitable for projects with higher requirements for flexibility. |
| Unfolded Size | Unfolded size is various, and the length can be customized according to the customer's demand | Support customized length and width according to the project's demand. |
| Material | HDPE (black, green) | HDPE is low temperature resistant and has better UV resistance. |
Advantage
1. Lightweight, flexible structure, adapt to complex terrain.
2. Corrosionresistant, antiaging, service life of more than 50 years.
3. Water permeability and air permeability, promote the growth of vegetation and realize ecological restoration.
4. High Strength: High strength polymer material with excellent tensile strength and durability.
5. Ecofriendly: Recyclable material, environmentally friendly.
6. Easy construction: Quick installation, short construction period, suitable for various terrain and climate conditions.
7. Costeffective: Low longterm cost, low maintenance cost, and significant economic benefits.
Slope protection mechanism
(A) Limit soil movement on the slope:
The threedimensional mesh structure formed after opening the geocell plays a strong lateral limiting effect on the soil or other materials filled in the cell. When the slope surface is subject to rain erosion, wind erosion or other external forces, the filling material inside the chamber is fixed in place, and is not easy to slide and lose, thus effectively preventing the slope surface soil movement and collapse.
(B) Dispersing slope load:
In the slope protection project, the slope surface may be subjected to pressure from the soil above, vehicle load or other external forces. Geocells can disperse these concentrated loads evenly over a larger area, reducing the local stress concentration on the slope surface and reducing the possibility of damage to the slope surface.
(C) Increase slope friction:
There is a certain friction between the geocell and the soil on the slope, while the filling material inside the cell also interacts with the cell wall, further increasing the friction on the slope. This friction can resist the downward force of the slope soil and improve the stability of the slope.
(D) Promote the growth of vegetation:
Geocells provide a good environment for vegetation growth. The soil inside the chamber can maintain a certain amount of moisture and nutrients, which is conducive to the germination and growth of plant seeds. The root system of the vegetation can go deep into the soil of the slope to further strengthen the slope, and at the same time, the vegetation can also play the role of beautifying the environment and reducing soil erosion.
Construction
1.Slope preparation: clean up the slope, remove debris and loose soil, and make sure the slope is level.

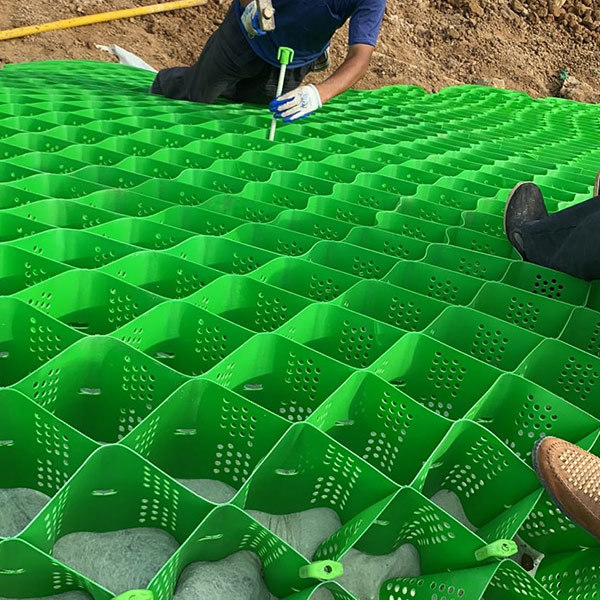

2. Laying geocells: Expand and fix the geocells on the slope surface, use anchors or Ushaped nails to fix them, and make sure that the cells are close to the slope surface.
3. Soil Filling: Fill the geocells with suitable soil, making sure that they are filled evenly and avoiding voids.
4. Vegetation planting: After filling the soil, plant suitable vegetation, such as grass, shrubs, etc., to enhance the ecological stability of the slope.
5. Maintenance and management: Regularly check the stability of the slope and the growth of vegetation, and carry out necessary maintenance and management.

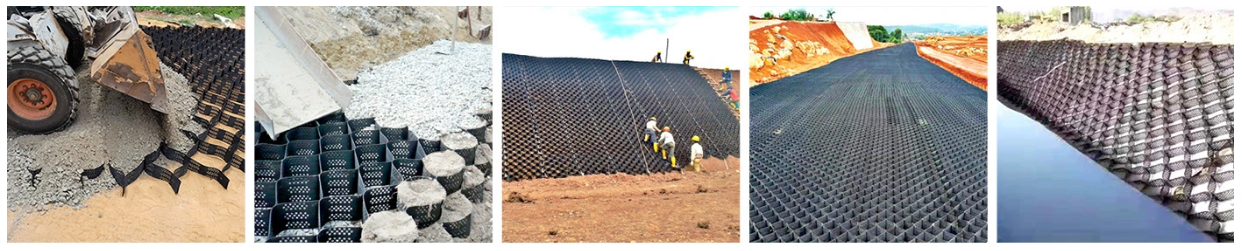

Case Display
15+ Experience In Geosynthetics&Experts In Slope Protection, Landscaping And Soil Stabilization Solutions.
Boyuan Geosynthetics provides perfect environmental protection slope protection, greening and soil stabilization system solutions for global customers in large-scale civil engineering projects such as highway and railroad transportation, water conservancy construction, landscaping, bridges and tunnels.
Production Facilities
We are a leading manufacturer of geosynthetics with a full range of production lines for geocells, erosion control nets, geotextiles, gabions geomembranes and geogrids. With a sizable annual production capacity and huge export volume, we utilize our core technologies and commitment to quality to provide reliable and efficient geotechnical engineering solutions to our customers worldwide.
We are committed to continuous improvement in production technology and full process product control to ensure excellence in every aspect of our products, from raw materials to finished products. Whether your needs are for small batch customization or large-scale production, our well-equipped system is capable of efficiently fulfilling the ever-changing product needs of the global geosynthetics market.
Geocell production lines
Geomat Production Lines
Geotextile production lines
Gabion Production Lines
Geogrid production lines
Geomembrane Production Lines
Testing Facilities
We always adhere to the principle of “Customer Satisfaction”, and strictly implement product quality standards, from raw material purchasing to finished products, we have established a perfect quality management system, and strictly control every link.
We are equipped with leading testing instruments and equipments, which can carry out all-round and accurate testing on the performance indexes of the products. We provide strong guarantee for product quality.
With strict quality control and advanced testing methods, we have successfully provided a large number of international customers with high-quality products and services, and won their trust and support.
Packaging and Transportation
Our products are packaged in waterproof and UV-resistant materials to protect them from the external environment during transportation.
All packaging is clearly labeled with product information and handling instructions to facilitate efficient customs clearance and delivery.
We offer a variety of packaging options, including palletized shipments, crate shipments and containerized shipments to meet specific customer requirements.
We offer a range of transportation options, including ocean, air and ground, to meet your specific delivery needs.
We work with experienced freight forwarders to ensure efficient customs clearance and timely delivery to your destination.
Our logistics team carefully monitors each shipment to ensure it arrives safely.
We provide comprehensive shipping documentation, including invoices, packing lists and certificates of origin for smooth import procedures.
Customer Testimonials
We are proud of the positive feedback we continue to receive from our international customers, which reflects our commitment to quality and customer satisfaction. We value the positive comments we receive from our international clients, which attest to our specialized industry knowledge.
We will continue to work hard to provide even better products and services to our customers. Customer satisfaction is our greatest motivation, and we will continue to adhere to our corporate development philosophy of innovation, excellence, cooperation and win-win situation to create greater value for our customers.
Customer visit
We are very pleased to receive international customers and fully introduce our products, services and production capacity to them.
We value the opportunity to build strong relationships with our international customers through site visits and cooperative discussions.
We are favored by both domestic and international customers for our superior quality and excellent service. Customers' visit is a confirmation of our strength and a source of motivation for us to keep moving forward. We will, as always, maintain long-term strategic cooperation with global customers to achieve win-win cooperation.
