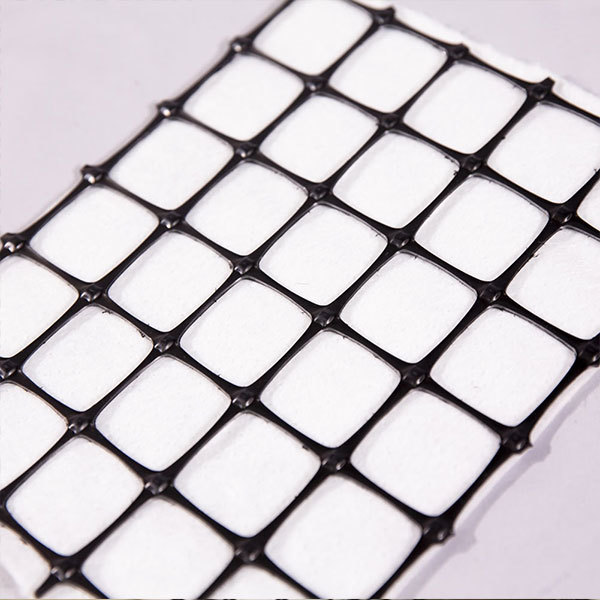

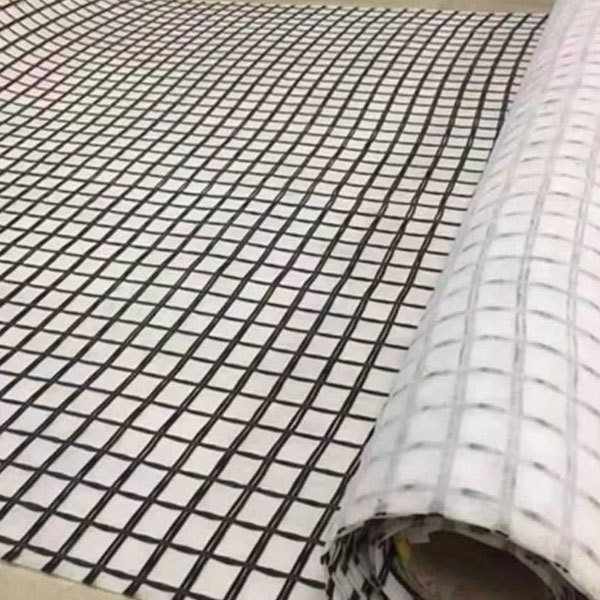

Polyester Biaxial Geogrid for Road Foundation Reinforcement

The paving surface of the geogrid should be relatively flat. After the paving layer is qualified, in order to prevent longitudinal deflection, white lines or hanging lines should be drawn on the paving layer according to the width to start paving.

Category：

Polyester Geogrid

Keywords：

Polyester Geogrid

+86-13754751021

bygeotextile@gmail.com

E-mail

Performance Indicators

Performance/Specification	PET 20-20	PET 30-30	PET 40-40	PET 50-50	PET 80-80	PET 100-100	PET 140-140	PET 180-180	PET 200-200	PET 300-300	PET 400-400	PET 500-500	PET 600-600	PET 1000-1000
Elongation rate %	13
Longitudinal Strength KN/M	20	30	40	50	80	100	140	180	200	300	400	500	600	1000
Transverse strength KN/M	20	30	40	50	80	100	140	180	200	300	400	500	600	1000
Grid center distance mm	12.7×12.7 25.4×25.4 40×40

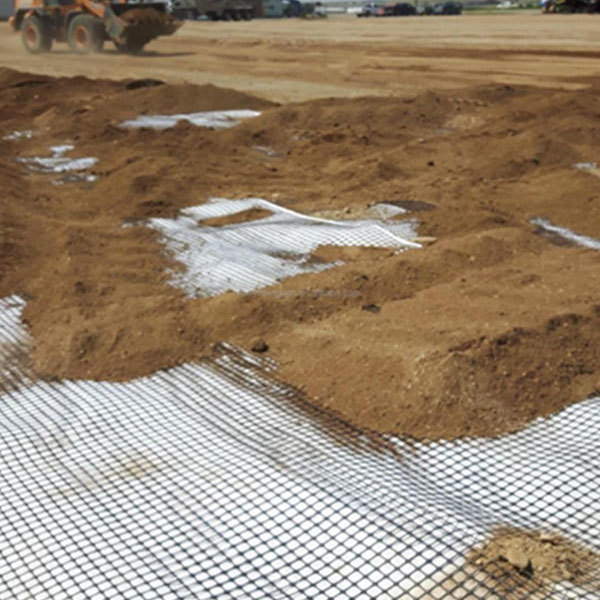

Construction Points

1. The paving surface of the geogrid should be relatively flat. After the paving layer is qualified, in order to prevent longitudinal deflection, white lines or hanging lines should be drawn on the paving layer according to the width to start paving.

2. Fix the end of the grid with iron nails (8 nails per meter wide, evenly spaced). After fixing the end of the grid, use a paving machine to slowly pull and lay the grid forward. Manually tighten and straighten every 10 meters long until one roll of the grid is laid, and then lay the next roll. The operation is the same as before.

3. After laying one roll, use a 6T-10T roller to roll it in the forward direction from the starting point. (If it is laid on the middle surface layer and leveling layer, it is advisable to use a steel roller roller; if the grille is directly laid on the concrete pavement, it is advisable to use a rubber roller roller.)

4. Laying: The length of the section to be laid is measured by the length of the roll. After the section to be laid with the grid is filled, the paving is checked again, and then the next section is laid. When the next section is laid, the grid and grid can be overlapped with a length of 10-15CM and fixed with iron nails or wooden wedges before continuing to lay the second section in the forward direction. The operation requirements are the same as before.
