HDPE geocell
Environmental sustainability is a key advantage of HDPE Geocell technology. By reducing the need for quarry materials and minimizing earthworks, it lowers the carbon footprint of construction projects while promoting vegetation growth when filled with soil.
Author:
Geocell is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet. It is flexible to fold during transportation, stretching out and being filled with stone or concrete during service, and forming into structure with powerful lateral confinement and rigidity.
Performance
It is flexible to fold during transportation,stretching out and being filled with stone or concrete during service,and forming into structure.
Application
1.Geocll can be used as cushion coat to strengthen loading capacity of weak ground.

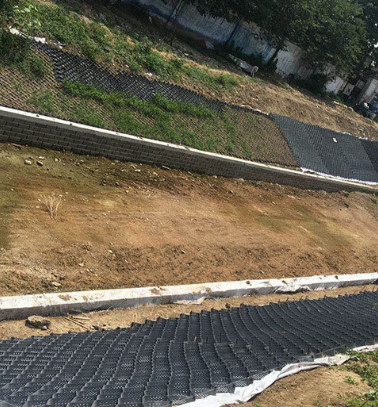

2.Geocell can be paved in slope as slope protection structure.
3.Geocell can be used to build the support block structure.
Specification
| Item Model | Height (mm) | Welding distance(mm) | Sheet thickness(mm) | Seam peel strength≥(N) | Expanded Cell Size(mm) | Expanded panel size (m) | |
| smooth | textured | ||||||
| TGLG-100-330 | 100 | 330 | 1.1 | 1.5 | 1420 | 244X203 | 2.44X6.15 |
| TGLG-150-330 | 150 | 2130 | 244X203 | 2.44X6.15 | |||
| TGLG-200-330 | 200 | 2840 | 244X203 | 2.44X6.15 | |||
| TGLG-100-356 | 100 | 356 | 1.1 | 1.5 | 1420 | 259X224 | 2.56X6.52 |
| TGLG-150-356 | 150 | 2130 | 259X224 | 2.56X6.52 | |||
| TGLG-200-356 | 200 | 2840 | 259X224 | 2.56X6.52 | |||
| TGLG-100-400 | 100 | 400 | 1.1 | 1.5 | 1420 | 295X250 | 4X5 |
| TGLG-150-400 | 150 | 2130 | 295X250 | 4X5 | |||
| TGLG-200-400 | 200 | 2840 | 295X250 | ||||
Environmental sustainability is a key advantage of HDPE Geocell technology. By reducing the need for quarry materials and minimizing earthworks, it lowers the carbon footprint of construction projects while promoting vegetation growth when filled with soil. The material is 100% recyclable and non-toxic, meeting stringent environmental regulations for civil engineering applications. Engineers and contractors worldwide trust HDPE Geocell for its proven performance in railway embankments, military access roads, reservoir linings, and landfill applications, where its combination of structural reinforcement and permeability delivers unmatched technical and economic benefits.
With a service life exceeding 50 years under normal conditions, HDPE Geocell represents a smart investment in infrastructure durability. Its ability to transform weak soils into stable working platforms has revolutionized cost-effective construction in developing areas while providing maintenance-free solutions for permanent installations. Backed by extensive research and field testing, this innovative geosynthetic solution continues to set new standards in ground stabilization technology, offering engineers a versatile tool to overcome geotechnical challenges while optimizing project budgets and timelines.
